  • Product

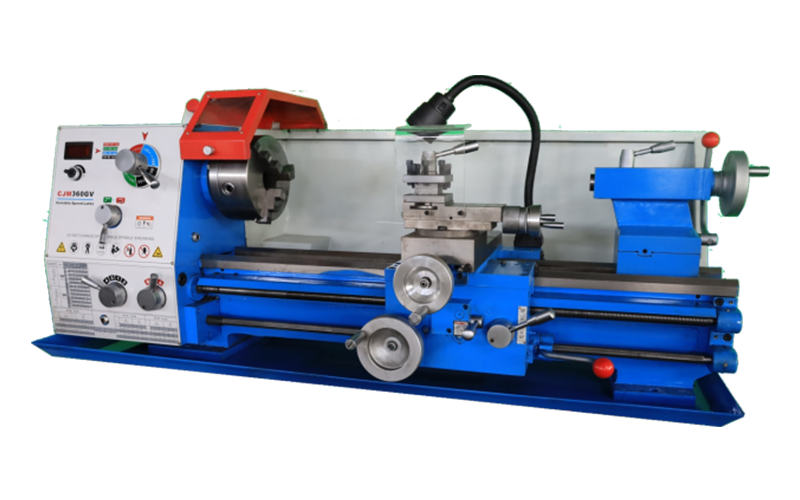

    CJM360GV
    Product CJM series light lathe products

    CJM360GV

    Product features

    ?The headstock is driven by ground gears , and the cyclic shifts changing by single handle to make the main spindle obtaining four ranges of speeds. In the selected ,range , the speed display

    will show the required cutting speed by adjusting the speed knob.

    The speed range is with many choics ,especially suitable for low-speed tooling.Large aperture, Spindle through hole φ52

    ?Feeding box with 12 steps of variable speeds ,covering common threading pitches .

    ?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

    ?High frequency hardened Two V-type widened guideway with rigidity.

    ?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod


    • Parameter
    • Machine tool accessories
    • External dimensions
    • Cooperation

    Technical parameters

    Model


    CJM360GV/600

    CJM360GV/750

    Max. swing over bed

    360mm

    Max. work-piece length

    600mm

    750mm

    Max. swing over carriage

    230mm

    Main spindle diameter

    52mm

    Main spindle taper

    MT.6#

    Max. cross travel of carriage

    205mm

    Max. travel longitudinal of toolpost

    100mm

    Metric threads range/ No

    0.25 ~7.0mm/26

    Imperial threads range/ No

    4 ~ 56T. P. I/ 37

    Module threads range/ No

    0.2 ~7M. P/27

    Diametrical threading range/ No

    4 ~216D. P/40

    Toolpost longitudinal feeding per spindle rotation

    0.049 ~ 1. 382mm/ r

    Toolpost cross feeding per spindle rotation

    0.022 ~0.61mm/ r

    Max. travel of tailstock sleeve

    90mm

    Tailstock sleeve taper

    MT.3#

    Spindle speed steps

    Four shifts + Speed adjustment

    Main Spindle speed scope

    60 ~ 1600 rpm

    Main motor power

    1. 5 kw

    Net weights/Gross weights

    370/420kg

    390/440kg

    Overall dimensions( L*W* H)

    140×70×64cm

    152×70×64cm

    Packing dimensions (L*W* H)

    150×76×77cm

    163×76×77cm


    Stamdard accessories

    Optional accessories

    3 -jaw chuck

    Φ200

    Chip tray

    Machine Base

    Belt

    A type 813

    Steady rest

    Follow rest

    Dead centers

    MT.3#,6#

    4 -jaw chuck  Φ200

    Flange plateΦ200

    Chuck spanner

    1  piece

    Face Plate  Φ250

    Thread dial indicator

    Allen wrench

    4#,5#,6#

    Special optional change gears(6)

    Live center

    Stud dead

    12 - 14; 17 - 19

    Coolant

    Work light

    Changing gears

    35T、36T、44T

    Digital readout

    Optional motor 2.2KW

    MN  gears

    2  piece





    Product features

    ?The headstock is driven by ground gears , and the cyclic shifts changing by single handle to make the main spindle obtaining

    four ranges of speeds. In the selected ,range , the speed display will show the required cutting speed by adjusting the speed knob.

    The speed range is with many choics ,especially suitable for low-speed tooling.Large aperture, Spindle through hole φ52

    ?Feeding box with 12 steps of variable speeds ,covering common threading pitches .

    ?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

    ?High frequency hardened Two V-type widened guideway with rigidity.

    ?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod


    Kind Tips:The products will be improved and updated continously. The changes shall not be noticed additionally. Due to the di?erent con?guration requirements , the machines pictures and physical objects may be di?erent , and the physical machines prevail.
