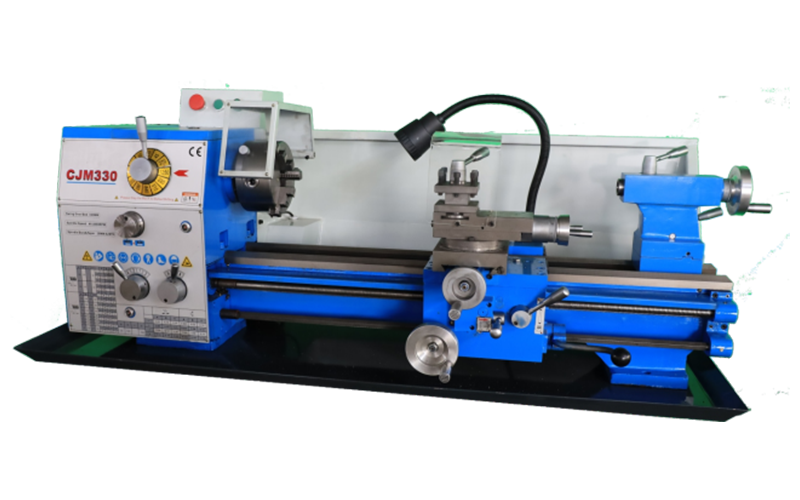

    CJM330
    Product CJM series light lathe products

    CJM330

    Product features

    ?Full gears driven in the headstock, with 8 steps of cyclic speed-changing.Invention patent technology.Minimum speed  45rpm

    ?Feeding box with 12 steps of variable speeds ,covering common threading pitches .

    ?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

    ?High frequency hardened Two V-type widened guideway with rigidity.

    ?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod


    • Parameter
    • Machine tool accessories
    • External dimensions
    • Cooperation

    Technical parameters

    Model


    CJM330/ 500

    CJM330/750

    Max. swing over bed

    330mm

    Max. work-piece length

    500mm

    750mm

    Max. swing over carriage

    200mm

    Main spindle diameter

    38mm

    Main spindle taper

    MT. 5#

    Max. cross travel of carriage

    200mm

    Max. travel longitudinal of toolpost

    75mm

    Metric threads range/ No

    0.40 ~ 3. 5mm/ 14

    Imperial threads range/ No

    8 ~ 56T. P. I/ 30

    Module threads range/ No

    0.20 ~ 1.75M. P/ 14

    Diametrical threading range/ No

    16 ~96D. P/ 12

    Toolpost longitudinal feeding per spindle rotation

    0.05 ~0. 35mm/ r

    Toolpost cross feeding per spindle rotation

    0.025 ~0. 18mm/ r

    Max. travel of tailstock sleeve

    75mm

    Tailstock sleeve taper

    MT.3#

    Spindle speed steps

    12

    Main Spindle speed scope

    45 ~2000 rpm

    Main motor power

    750W

    Net weights/Gross weights

    280/ 320kg

    290/ 335kg

    Overall dimensions( L*W* H)

    117×68×65cm

    142×68×65cm

    Packing dimensions (L*W* H)

    131×78×77cm

    153×78×77cm


    Stamdard accessories

    Optional accessories

    3 -jaw chuck

    Φ160

    Chip tray

    Machine Base

    Belt

    A type 800

    Steady rest

    Follow rest

    Dead centers

    MT.3#, 5#

    4 -jaw chuck  Φ160/ Φ200

    Flange plateΦ160/ Φ200

    Chuck spanner

    1  piece

    Face Plate  Φ250

    Thread dial indicator

    Allen wrench

    4#,5#,6#

    Special optional change gears( 10)

    Live center

    Stud dead

    12 - 14; 17 - 19

    Coolant

    Work light

    Changing gears

    40T

    Digital readout

    Optional motor 1. 1/ 1. 5KW




    Product features

    ?Full gears driven in the headstock, with 8 steps of cyclic speed-changing.Invention patent technology.Minimum speed  45rpm

    ?Feeding box with 12 steps of variable speeds ,covering common threading pitches .

    ?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.

    ?High frequency hardened Two V-type widened guideway with rigidity.

    ?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod


    Kind Tips:The products will be improved and updated continously. The changes shall not be noticed additionally. Due to the di?erent con?guration requirements , the machines pictures and physical objects may be di?erent , and the physical machines prevail.
